Battery chargers:
High-performance solutions for industry and transport

MSB offers a range of robust, powerful battery chargers, AC-DC switching power supplies and rectifiers in unidirectional and bidirectional designs. The use of bidirectional DC- DC converters makes sense in order to generate an “emergency power supply”, e.g. for emergency ventilation, in the event of a power failure.

Our AC-DC switching power supplies use a high-frequency power conversion topology and optimized magnetic fields to ensure reliability, efficiency and compact dimensions.

For charging batteries without galvanic isolation up to 900 Vdc, the use of bidirectional DC / DC and AC / DC converters for battery charging and for generating emergency power networks is an inexpensive option.

Features:

  • Output power up to 50 kW
  • AC inputs 3 x 400 Vac / 1 x 230 Vac / 50 Hz
  • customer-specific variants possible e.g. 1 x 200 Vac 16 2⁄3 Hz

  • DC outputs: 24 Vdc to 900 Vdc or customized
  • PFC (Power Factor Corrected) (EN 61000-3-2)
  • optionally with redundancy and parallel operation
  • Universally applicable for all common battery types
  • EMI filtering to meet the required standards
  • Fire protection according to EN
  • IEC 61373 shock and vibration standards

Application areas:

Railway technology

  • High-speed and regional trains
  • Metros and trams
  • Locomotives and passenger coaches
  • Special vehicles
  • Industrial trucks



Industrial trucks

Airport logistics

Product examples in the field of battery chargers

bidirectional battery charger 5 kW

Battery charger in underfloor design for rail vehicles with a high degree of protection. Input voltage from 24-700 Vdc, optionally single or three-phase output voltage from 230 V to 480 Vac.

Eigenschaft Detail
Power 5 kVA
Input / output: 3 x 400 Vac | 5 kW with PFC
Output / input: 24 Vdc | 5 kW
Control: Can, Analog/Binär I/O
Protective function: Over / under voltage, over current / short circuit protection, plausibility check
Norm: EN50155, IP65 TX(-40°C to +70°C)

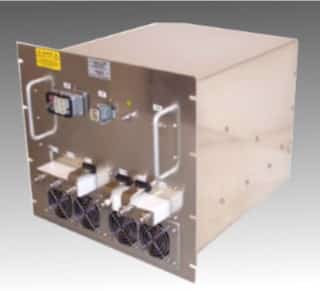

Battery charger 10 kW 19-inch

feature detail
Power: 10 kW
Input-/output: 3 x 400 – 1 x 230 Vac
Out-/input: 24 Vdc | 400 A
Control: Can, analog / binary I / O
Protective function: Over / under voltage, over current / short circuit protection, plausibility check
Norm: EN50155, IP55 TX(-40°C to +70°C),

Battery charger 50 kW

feature detail
Power: 50 kW
Input / output: 3 x 400 Vac
Output / input: max 900 Vdc
Control: Can, analog / binary I / O
Protective function: Over / under voltage, over current / short circuit protection, plausibility check
Norm: EN50155, IP 55 TX(-40°C to +70°C)
